Product Description
Product Description
Panel: LG, SAMSUNG,BOE
SAMSUNG higher price, best quality
LG: cheaper price, good quality
Connection way:
1, Using HDMI splitter, stable quality, HDMI resolution.
2, Using DVI looping connection, HDMI resolution.
3, Using DP looing connection, 4K resolution, need signal INPUT and media resource to be 4k.
4, Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5, Can use large screen processor for signal input, for example: 16 HDMI in, 16 hdmi out, 8 vga in and 8 vga out, etc, can customized. Can have float windows. (EXPENSIVE)
Cables:
HDMI cable, DP cable--4k, RJ45 cable, power cables,etc.
Bracket:
1, Normal bracket, can not pop-in and pop-out
2, Pop-in and pop-out bracket, better for future maintaince
For signal input:
1, Can use media player boxes for input HDMI or 4K signal. Can buy media player box in local market or buy from us.
2, Can use PC for signal input.
3, Can use camera for signal input with HDMI output.
4, Matrix
5, Large screen processor
Outer design:
1, Install onto the wall.
2, Make floor standing

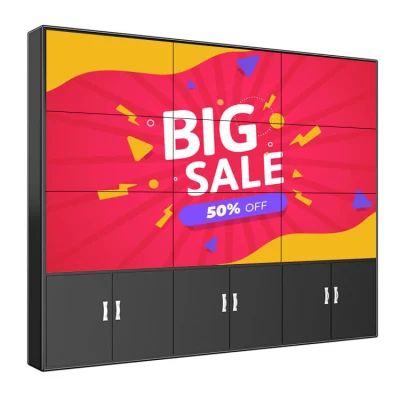

3, Floor standing with cabinet below
4, Can make whole unit with frame and cabinet
5, Can make whole unit with floor standing cabinet,frame, can add big tempered glass, add IR touch frame, make the whole video wall as big touch screen monitor, can also built in PC or android hardware, make it as Android or PC touch kiosk.
6, Can add motion sensor into this big kiosk, let it have motion sensor function.
7, Can also make curved bracket, to make it as curved video wall.
| LCD Technology | Original BOE LCD |
| Active Screen Diagonal | 65" (TPK-DV650QUM-NV0) |
| Panel Dimension(WxH) | 1432.6 × 807.6mm |
| Total Bezel Width | 3.5mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920*1080 |
| Backlight System | WLED |
| Luminance(nits) | 500cd/m2 |
| Contrast | 1200:1 (type.) |
| Viewing Angle | 89/89/89/89 |
| Display Colors | 8Bit,16.7M |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=160W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Working Time Capacity | 7x24x365hours |
| Digital signal input | HDMI×1 1920x1080@60Hz backward compatible |
| Computer signal input | VGA(DB-15) ×1 1920x1080@60Hz backward compatible |
| Digital signal input | DVI(DVI-I)×1 1080P(1920×1080) backward compatible |
| RS232 input | 1 |
| RS232 output loop | 2 |
| Computer centralized control interface | RS232 |
| Working temperature | 0ºC~ 50ºC |
| Storage temperature | -20ºC~ 65ºC |
| Working Humidity | 20%-80% |
FAQ:
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs and free of charge.
Q: What kind of inspection you can provide?
A: Topadkiosk has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Topadkiosk provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Topadkiosk will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Topadkiosk will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Topadkiosk will provide maintenance service and technical support (Hardware and other possible charges, Topadkiosk will not bear the responsibility).
Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here. It's our pleasure to provide best solution for you.
Q: What's the lead time?
A: Mass order: 7-10 days depending on order quantity.
Sample: 1 day when there is stock,7-10 days for custom design.
Q: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
Q: Do you provide OEM service?
A: Of course. We have a professional team which is having considerable experience in colour decoration cases and manufacturing. Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
